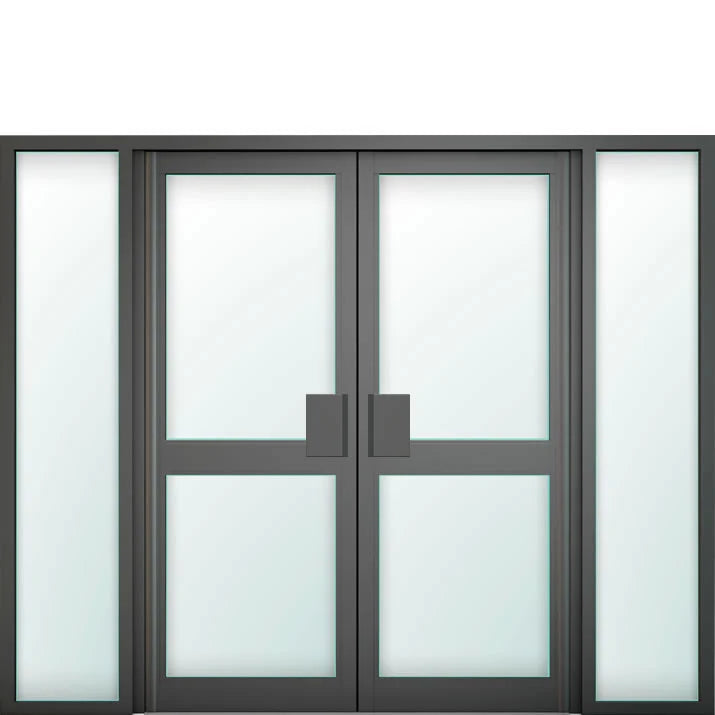

Aluminium Commercial Façade Shop Door Style 44
The Aluminium Commercial Façade Shop Door Style 44 is precision-engineered for commercial environments that demand both reliability and contemporary design. Made to measure for retail spaces, offices, and high-footfall entrances, this door is built to your exact specification — size, colour, glazing, and hardware — and backed by Forge Finishes' 10-year insurance-backed guarantee.
FORGE FINISHES
Technical Data Sheet
Commercial Doors
Frame & Glazing
| Spec | Value |
|---|---|
| Frame Depth | 100mm |
| Glazing Thickness (Double Glazing) | 24 to 28mm |
Thermal Performance
| Glazing Type | Glass U-Value | Door U-Value |
|---|---|---|
| Double Glazing | 1.0 W/m²K | 3.6 W/m²K (3.0 W/m²K depending on configuration) |
| Triple Glazing | 0.7 W/m²K | 3.4 W/m²K (2.8 W/m²K depending on configuration) |
Durability
EN 1191 Category: 50,000 cycles
Size & Weight Limits
| Configuration | Max Leaf Size | Max Leaf Weight |
|---|---|---|
| Single Door | 1250mm (W) × 2400mm (H) | 80kg |
| Double Door | 1250mm (W) × 2400mm (H) per leaf | 80kg per leaf |
Sightlines
| Component | Dimension |
|---|---|
| Head | 50mm |
| Transom | 153mm |
| Threshold | 143mm |
| Jamb (AFT, Anti-Finger Trap side) | 170mm |
| Jamb (Lock side) | 132mm |
Available Options
- Fire Exit option
- Part M compliant low threshold
- Anti-Finger Trap
- Mid-Rail and Lay Bar
- Panel Door
- Single Point Locking
- Concealed Hinges
- Barrel Hinges
- Electro Mechanical Locking
Available Finishes
- Single Colour
- Textured Finish
- Anodised Finish
Installation Notes
- Doors are factory-set in a neutral position — adjustment and tuning required on installation
- Bottom pivot carries door weight and lateral loads — must be fully supported and fixed securely to the floor
- Fixing should be within 150mm of each corner and approximately every 600mm along the frame
- Clearance at lock stile should be approximately 3mm at both top and bottom when closed
- Door closing and latching speed are separately adjustable via screws in the header bar
Commercial Threshold
Double Ramp
Usually used when placed directly onto a floor with the same level internally as externally.
Note: this option is NOT available with a sill.
Please note: Commercial pivot doors do not have a weather rating. In exposed areas it is possible that they can be blown open, this can lead to draughts / water ingress. Consideration for additional weathering such as a canopy or porch should be made when carrying out a site survey.
